What Is A Float Valve And How Does It Work?

What Is A Float Valve And How Does It Work?

A Float Valve is a mechanical device designed to regulate water flow in a container or reservoir. It operates using a floating ball or bowl that moves along the water surface. When the water level reaches a certain limit, the float activates the valve, either allowing or stopping the water flow.

Where Are Float Valves Used?

Float valves are widely used in:
• Toilet tanks
• Water storage tanks
• Cooling systems
• Irrigation systems
• Well and sump pump systems
By maintaining water levels automatically, float valves prevent overflow and reduce water wastage, making them an essential component in water management systems.

Float Valve Vs. Float Switch: Understanding The Difference

Many people confuse Float Valves with Float Switches, but they serve different purposes:

Float valve: Works by mechanically opening or closing a valve. Regulates water flow based on a float’s movement. Commonly found in toilet tanks and storage reservoirs.

Float switch: Operates an electrical switch instead of a valve. Used to turn pumps on or off based on water levels. Found in well systems, sump pumps, and industrial tanks.

In simpler terms, if you check a toilet tank, you’ll see a floating ball attached to a rod. When the water level drops, the float moves down, opening the valve and allowing water to fill the tank. Once the water reaches a set level, the float rises, closing the valve. This is how a Float Valve functions. On the other hand, Float Switches do not control a water valve directly. Instead, they activate or deactivate a pump. For example, in a sump pump, when water rises above a certain level, the switch turns on the pump, removing excess water.

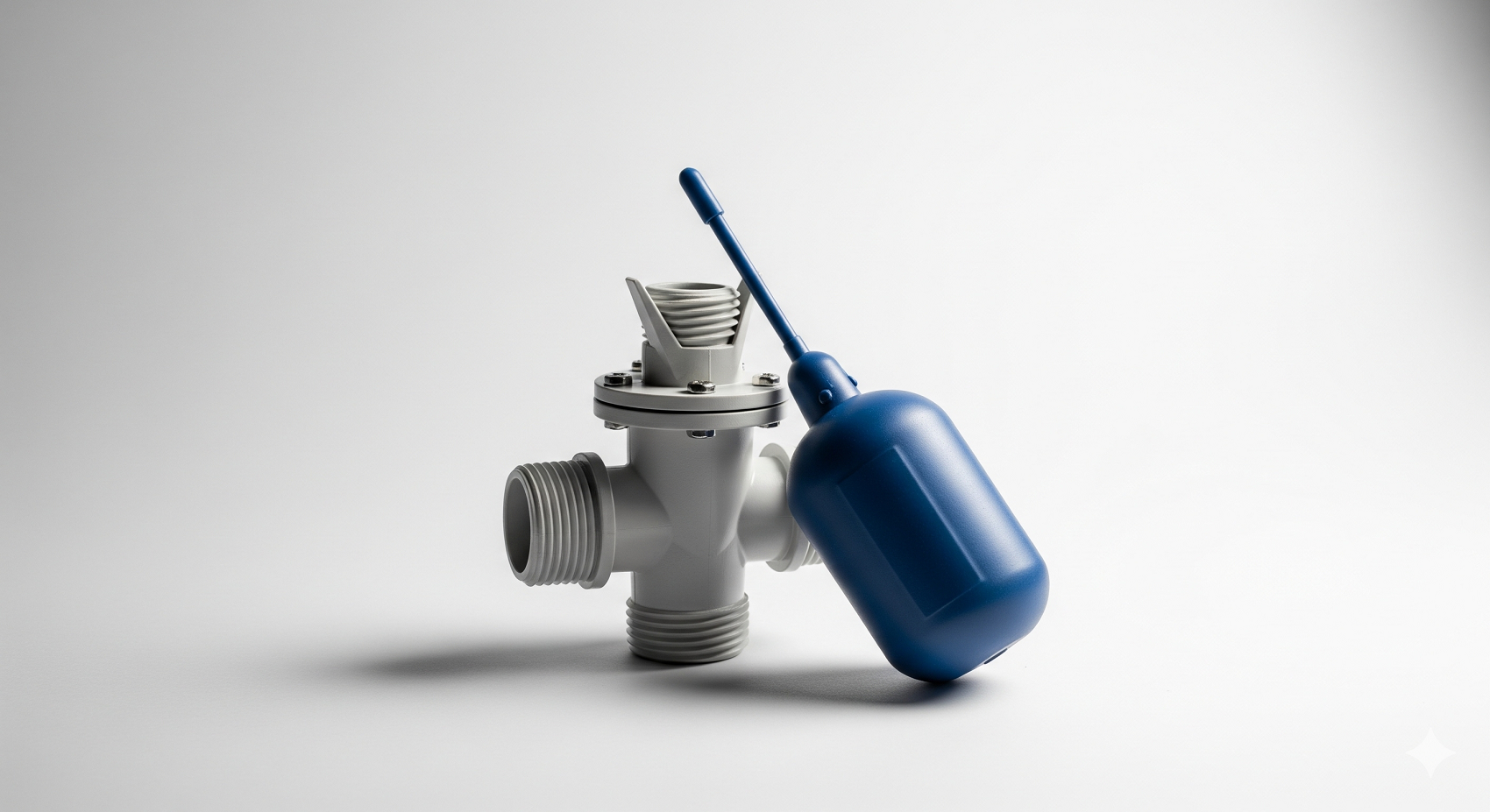

Components Of A Float Valve

A float valve consists of several key components:
• Float ball: A buoyant ball that moves with the water level.
• Float rod: A metal or plastic rod connecting the ball to the valve.
• Valve body: The main housing where the water flow is controlled.
• Control mechanism: Can be a diaphragm, slide valve, or piston that opens or closes the water inlet.

How a float valve works – simple step-by-step explanation

Understanding how a float valve functions can help you maintain and troubleshoot water systems effectively.
When water is used from a tank or reservoir, the water level naturally goes down. This can happen in a toilet tank after flushing, in a water storage system supplying a home, or in any system where water is being used.

As the water level decreases, a floating ball inside the tank also moves downward. This ball is attached to a lever, which is connected to the valve mechanism. The float’s position directly controls whether the valve is open or closed.
When the float moves down, it signals the valve to open. This allows fresh water to flow into the tank or reservoir. The system is designed so that water automatically starts filling up as soon as the level drops below a set point.
As water continues to fill the tank, the floating ball starts rising with the water level. The higher it goes, the closer it gets to shutting off the valve.

Once the water reaches the desired level, the float lifts high enough to close the valve. This stops any additional water from entering, preventing overflow and ensuring a stable water level.
This simple yet effective process allows water tanks, toilet cisterns, and storage reservoirs to regulate their water supply automatically without needing manual control.

Advantages Of Using Float Valves

Given the hot and arid climate of the UAE, water management is crucial. Here’s why float valves are beneficial:
• Prevents water overflow: Stops excessive water wastage.
• Reduces manual monitoring: Automatically regulates water levels.
• Saves money: Efficient water usage leads to lower utility bills.
• Extends system lifespan: Prevents damage caused by inconsistent water levels.
• Eco-friendly: Helps in sustainable water conservation efforts.

Float valves are essential components in water management, ensuring efficient and automatic regulation of water levels. Whether in homes, businesses, or industrial setups, these valves prevent water wastage and maintain a consistent water supply. By understanding how a Float Valve works and following simple maintenance steps, you can enhance the longevity and efficiency of your water system.
